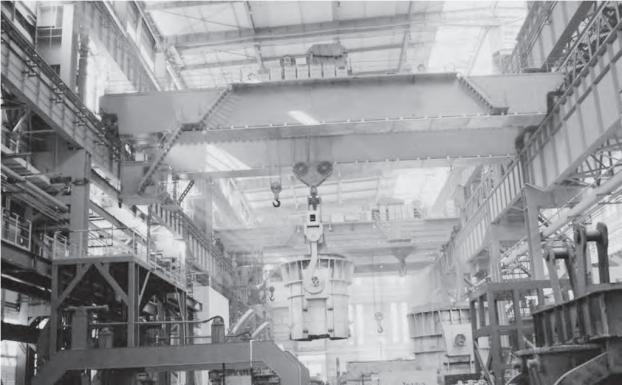

The YZ Type Foundry Overhead Crane with Hook is key equipment for steelmaking and continuous casting processes. It is mainly used for lifting and transporting molten metal ladles. With a lifting capacity range of 5-320T, the crane can adopt double-girder double-rail, four-girder four-rail, or four-girder six-rail structures according to working conditions. Optional functions include rotary spreader, adjustable hook distance, and load weighing and display. It is safe, reliable, durable, and easy to maintain, making it suitable for steel plants, metallurgical workshops, and continuous casting lines.
Product Features：
1. Designed for Metallurgical Foundry Operations
The YZ foundry crane is mainly used in steelmaking and continuous casting processes for lifting and transporting molten metal ladles.
2. Multiple Structural Forms Available
Depending on lifting capacity and working conditions, the crane can adopt double-girder double-rail, four-girder four-rail, or four-girder six-rail structures.
3. Safe and Reliable for High-temperature Environments
This crane is designed for high-temperature, heavy-load, and continuous operation environments where safety and stability are essential.
4. Special Lifting Devices Available
Rotary spreaders, gantry hooks, and special lifting devices can be selected according to ladle handling requirements.
5. Load Weighing and Display Optional
A load weighing and display system can be added to help operators monitor lifting loads in real time and improve operational safety.
6. Durable and Easy to Maintain
According to the catalog, the crane features economical durability and easy maintenance, making it suitable for long-term metallurgical production.
Technical Specifications：
| Parameter | Specification |
|---|---|
| Product Name | YZ Type Foundry Overhead Crane with Hook |
| Crane Type | Foundry Overhead Crane |
| Lifting Capacity | 5-320T |
| Lifting Object | Molten Metal Ladle |
| Structure Type | Double-girder Double-rail / Four-girder Four-rail / Four-girder Six-rail |
| Lifting Device | Hook / Gantry Hook / Special Spreader |
| Optional Functions | Rotary Spreader, Adjustable Hook Distance, Load Weighing and Display |
| Working Environment | High-temperature Metallurgical Environment |
| Application | Steelmaking, Continuous Casting, Foundry, Metallurgy |
| Customization | Capacity, Span, Lifting Height, Structure Type, Control System |
Available Capacity Range：
| Model | Capacity |
|---|---|
| YZ Foundry Crane | 5t |
| YZ Foundry Crane | 10t |
| YZ Foundry Crane | 16/3.2t – 20/5t |
| YZ Foundry Crane | 32/5t – 50/10t |
| YZ Foundry Crane | 74/20t |
| YZ Foundry Crane | 100/32t – 125/32t |
| YZ Foundry Crane | 125/32t – 140/40t |
| YZ Foundry Crane | 140/40t |
| YZ Foundry Crane | 160/40t |
| YZ Foundry Crane | 180/50t – 240/75t |
| YZ Foundry Crane | 280/75t – 320/80t |
The YZ Type Foundry Overhead Crane with Hook is key lifting equipment used in steelmaking and continuous casting processes. It is mainly designed for lifting and transporting molten metal ladles. This crane is suitable for steel plants, steelmaking workshops, continuous casting workshops, metallurgical production lines, and other high-temperature, heavy-duty, and high-safety industrial environments.
According to lifting capacity and working conditions, the crane can adopt different structural forms, such as double-girder double-rail, four-girder four-rail, and four-girder six-rail structures. In general, the first two structures are used for medium and large-capacity foundry cranes, while the four-girder six-rail structure is often used for super-large capacity foundry cranes. According to the catalog, this crane features advanced technology, a novel structure, reliable safety, economical durability, and easy maintenance.
The YZ foundry crane can be equipped with optional functions such as rotary spreader, adjustable gantry hook distance, and load weighing and display system. It is designed to meet the requirements of ladle handling, molten metal transfer, and metallurgical production processes where safety, stability, and continuous operation are critical.
