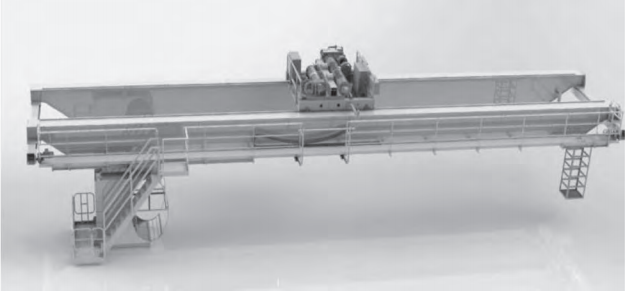

The New-type Overhead Crane with Hook adopts serialized, standardized, and modularized design, with a lifting capacity range of 5-400T. Compared with traditional overhead cranes, it features light dead weight, small wheel pressure, low clearance, small hook limit, high transmission efficiency, low maintenance, and energy-saving performance. Full crane frequency control ensures smooth starting and braking, while optional functions such as hook anti-sway and double braking are available. It is suitable for modern workshops, machinery manufacturing, steel structure processing, warehouse logistics, and large industrial production applications.
Product Features：
1. Modular Design with Strong Adaptability
The crane adopts serialized, standardized, and modularized design concepts, allowing flexible configuration according to different lifting capacities, spans, lifting heights, and working conditions.
2. Light Dead Weight and Small Wheel Pressure
Compared with traditional overhead cranes, the optimized structure reduces dead weight and wheel pressure, helping reduce workshop structural requirements and construction cost.
3. Low Clearance Design for Better Space Utilization
The low-clearance design increases effective lifting height and reduces building height requirements, improving workshop space utilization.
4. Small Hook Limit and Larger Working Area
The small hook limit expands the effective working area and improves material handling coverage within the workshop.
5. High Transmission Efficiency and Fewer Failure Points
With fewer transmission links, the crane offers higher transmission efficiency and fewer failure points, improving overall operational reliability.
6. Full Crane Frequency Control
Frequency conversion control provides smooth starting and braking, improving positioning accuracy and operational safety.
7. Energy-saving Operation
Lower total installed power helps save electricity and reduce long-term operating costs.
8. Multiple Optional Functions
Optional features such as hook anti-sway and double braking can be configured to improve lifting stability and safety.
Technical Specifications：
| Parameter | Specification |
|---|---|
| Product Name | New-type Overhead Crane with Hook |
| Crane Type | Modular Overhead Crane |
| Lifting Capacity | 5-400T |
| Lifting Device | Hook |
| Design Concept | Serialized, Standardized, Modularized Design |
| Speed Control | Full Crane Frequency Conversion Control |
| Structure Features | Light Dead Weight, Small Wheel Pressure, Low Clearance |
| Working Advantages | Small Hook Limit, Large Working Area, Wide Coverage |
| Maintenance | High-quality Components, Low Maintenance, Long Service Life |
| Optional Functions | Hook Anti-sway, Double Braking |
| Application | Workshop, Warehouse, Production Line, Machinery Manufacturing, Steel Structure Processing |
| Customization | Capacity, Span, Lifting Height, Control System, Optional Functions |
Available Capacity Range：
| Model | Capacity |
|---|---|
| New-type Overhead Crane with Hook | 5t – 10t |
| New-type Overhead Crane with Hook | 16/5t – 20/5t |
| New-type Overhead Crane with Hook | 32/5t – 50/10t |
| New-type Overhead Crane with Hook | 63/16t – 75/20t |
| New-type Overhead Crane with Hook | 100/20t – 125/32t |
| New-type Overhead Crane with Hook | 160/32t |
| New-type Overhead Crane with Hook | 400/50t |
The New-type Overhead Crane with Hook is a modern bridge crane developed based on serialized, standardized, and modularized design concepts. It combines modern computer-aided design technology with advanced manufacturing processes and is suitable for machinery manufacturing, steel structure processing, assembly workshops, warehouse logistics, energy equipment manufacturing, and large industrial production facilities.
Compared with traditional overhead cranes, this new-type overhead crane features lighter dead weight, smaller wheel pressure, lower clearance, smaller hook limit, larger working area, higher transmission efficiency, lower maintenance requirements, and longer service life. It can effectively reduce workshop construction costs, increase effective lifting height, and improve space utilization.
According to the catalog, the whole crane can adopt frequency conversion speed control, providing smooth starting and braking, safer operation, and easier control. The crane also requires lower total power, helping reduce energy consumption. Optional functions such as hook anti-sway and double braking are available according to customer requirements.
This crane is suitable for industrial users who require higher operation efficiency, accurate positioning, optimized workshop space, energy saving, and reduced long-term maintenance cost. It is an upgraded solution compared with traditional overhead cranes.
