| Parameter | Specification |
|---|---|
| Product Name | CD1 / MD1 Series Electric Wire Rope Hoist |
| Product Model | CD1 Single Speed / MD1 Dual Speed |
| Product Type | General Purpose Electric Wire Rope Hoist |
| Lifting Capacity | 0.5–32 tons, customizable |
| Standard Lifting Height | 6m, 9m, 12m, 18m, 24m, 30m, customizable |
| Lifting Speed | CD1: 8 m/min; MD1: 8/0.8 m/min |
| Travelling Speed | 20 m/min standard, inverter control optional |
| Work Duty | ISO M3 / M4, depending on configuration |
| Power Supply | 3-phase, 380V / 400V / 415V, 50Hz / 60Hz; custom voltage available |
| Control Voltage | 36V safety voltage, optional |
| Protection Class | IP44 standard, IP54 optional |
| Insulation Class | Class B / Class F, depending on motor configuration |
| Ambient Temperature | -25°C to +40°C |
| Control Method | Pendant control / wireless remote control optional |
| Installation Type | Monorail travelling type / fixed type |
| Applications | Workshop, warehouse, factory, maintenance area, single girder crane, monorail system |

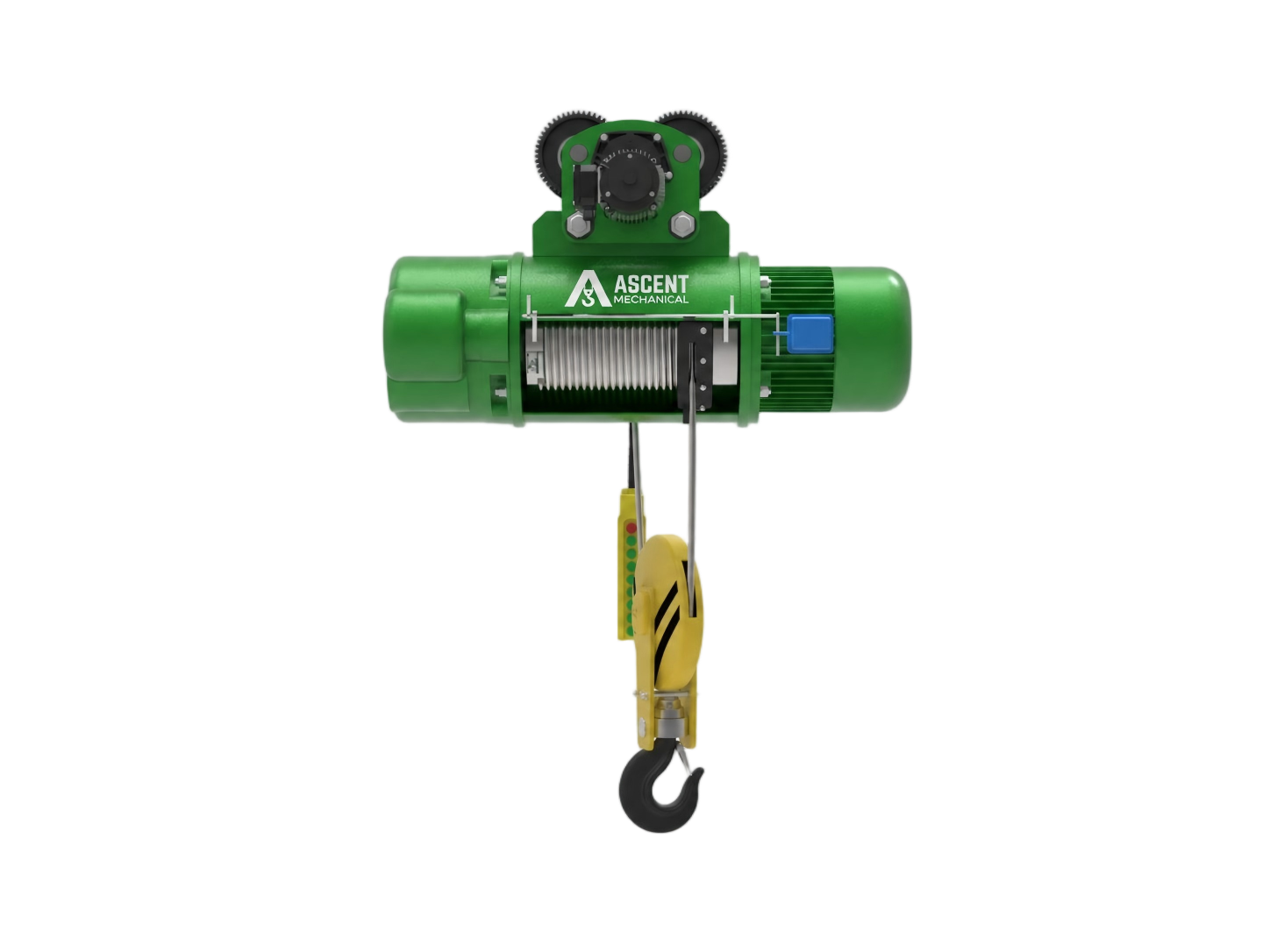

The CD1 / MD1 Series Electric Wire Rope Hoist is a traditional and widely used lifting device designed for general material handling applications. It can be installed on single-girder overhead cranes, I-beam tracks, monorail systems, or fixed supports to achieve vertical lifting and horizontal travelling of loads.
The CD1 model provides single-speed lifting and is suitable for general lifting, loading, unloading, warehouse handling, and maintenance operations. The MD1 model provides dual-speed lifting, offering both fast lifting and slow precise positioning, making it suitable for mold handling, equipment installation, machinery processing, and applications requiring accurate load positioning.
This series adopts a wire rope drum structure, conical rotor motor, mechanical braking system, and limit protection devices. With simple structure, easy operation, low maintenance cost, and widely available spare parts, it is an economical and practical lifting solution for factories, warehouses, workshops, maintenance areas, and light to medium-duty crane systems.
